Preliminary - Available in late 2026

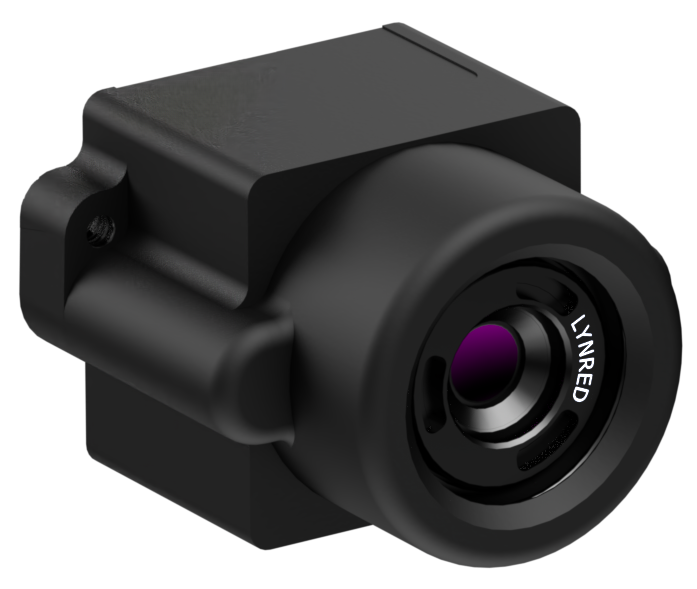

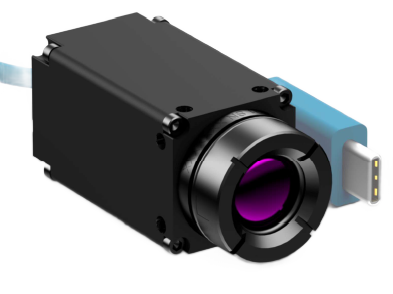

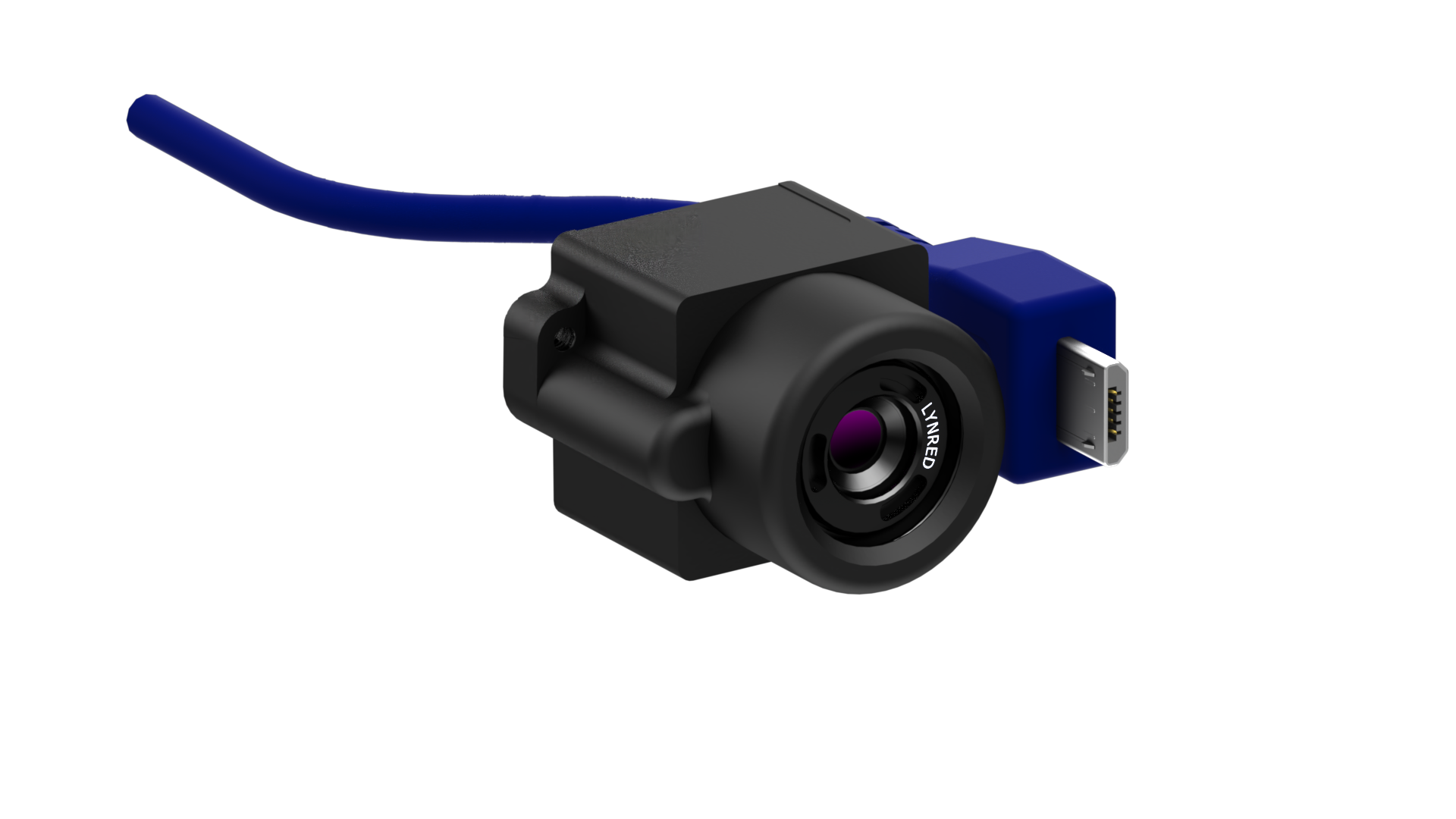

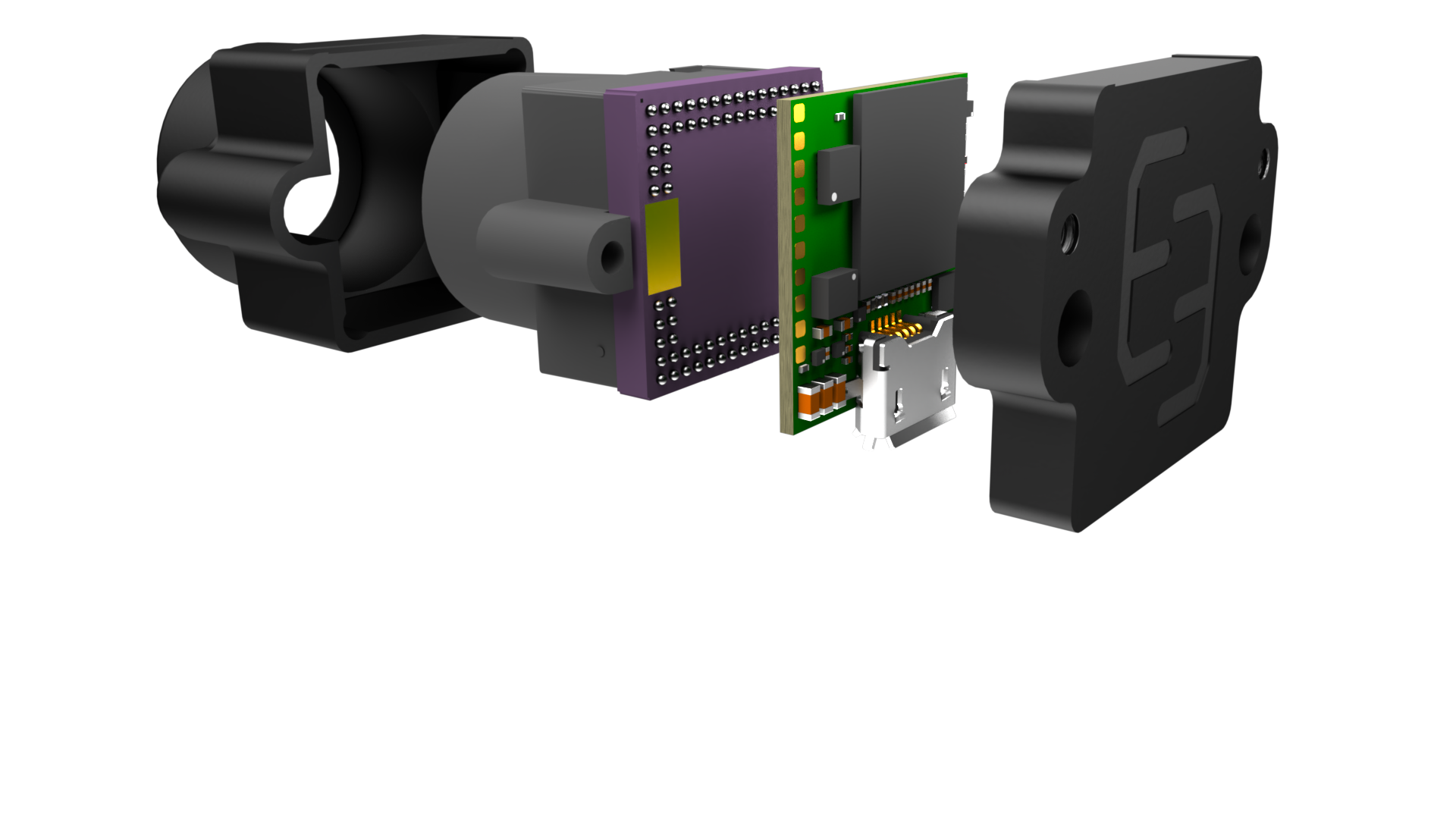

ERNEST 10 is the versatile Compact Camera Core from Senssight, the technology expert for thermal vision systems. Based on the SeeCube family, the proven hardware electronics of FullScale, it achieves market-leading performance in term of size, power and image quality.
ERNEST 10 streamlines the integration of a cost-effective camera core into various thermal imaging solutions and allow our customers to focus on value-added integration.
Thermal Imager
Vendor / Name : Lynred / YOCTO1024
Array format : 1024 x 768 pixels
Pixel pitch : 12μm
Thermal Spectral Range : 8μm – 14μm
Thermal Sensitivity : ≤65mK
Frame Rate Options : 50Hz (Default); 30Hz
Physical Shutter : Yes
SDK Processing Options
_SL
_SL+
_R1
Measuring Range : -10°C to 120°C
Accuracy : Typical +/-2°C or 2% (TBC)
Standard Lens Options & Physical
| Standard Lens Options | HFOV | Focal length | F-Number | Dimensions (L x W x D) | Weight |
|---|---|---|---|---|---|
| Lens option _35 | - | - | - | - | - |
| Lens option _14 | - | - | - | - | - |
| Lens option _9 | - | - | - | - | - |
| Lens option _5 | - | - | - | - | - |
Electrical
Power consumption : <650mW
Power Supply Voltage : 5V (USB powered)
Additional shutter activation power : 1.8W (100ms)
Interfacing
Image transfer protocol : USB UVC
Configuration protocol : USB CDC
Connector type :
USB Speed : 2.0 Hi-Speed
UBS Raw Data Format : Y16 Big Endian
Environmental
Operating Temperature Range : -35° to 75°C
Optimal Radiometry temperature range : 10° to 60°C
Get a quote and ask to get datasheet by email.
