FULL SET OF THERMAL IMAGING SOLUTIONS

Among the many features we offer, including resolution and field of view, you should find the camera core you’re looking for your project. If not, please do not hesitate to contact us.

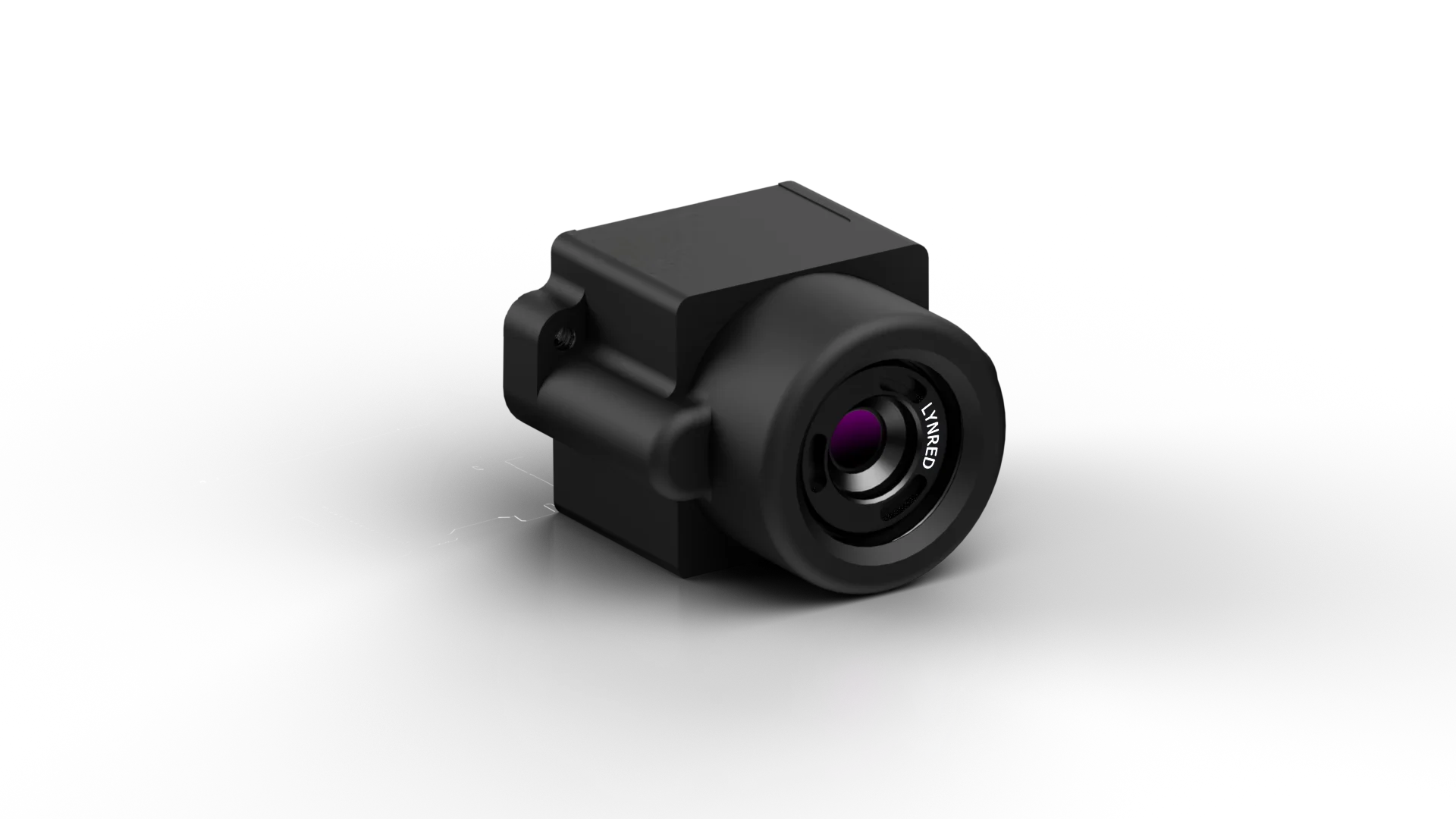

Eileen 3

Eileen 3
  • Resolution : QVGA 320 x 240 pixels
  • Frame rate : 60 FPS
  • Dimension : 18 x 17mm
  • NETD : <50mK standard
  • Shutter : Native Shutterless
  • Interface : USB
  • HFOV : 28°, 42° or 70°
  • Sensor : LYNRED ATI320

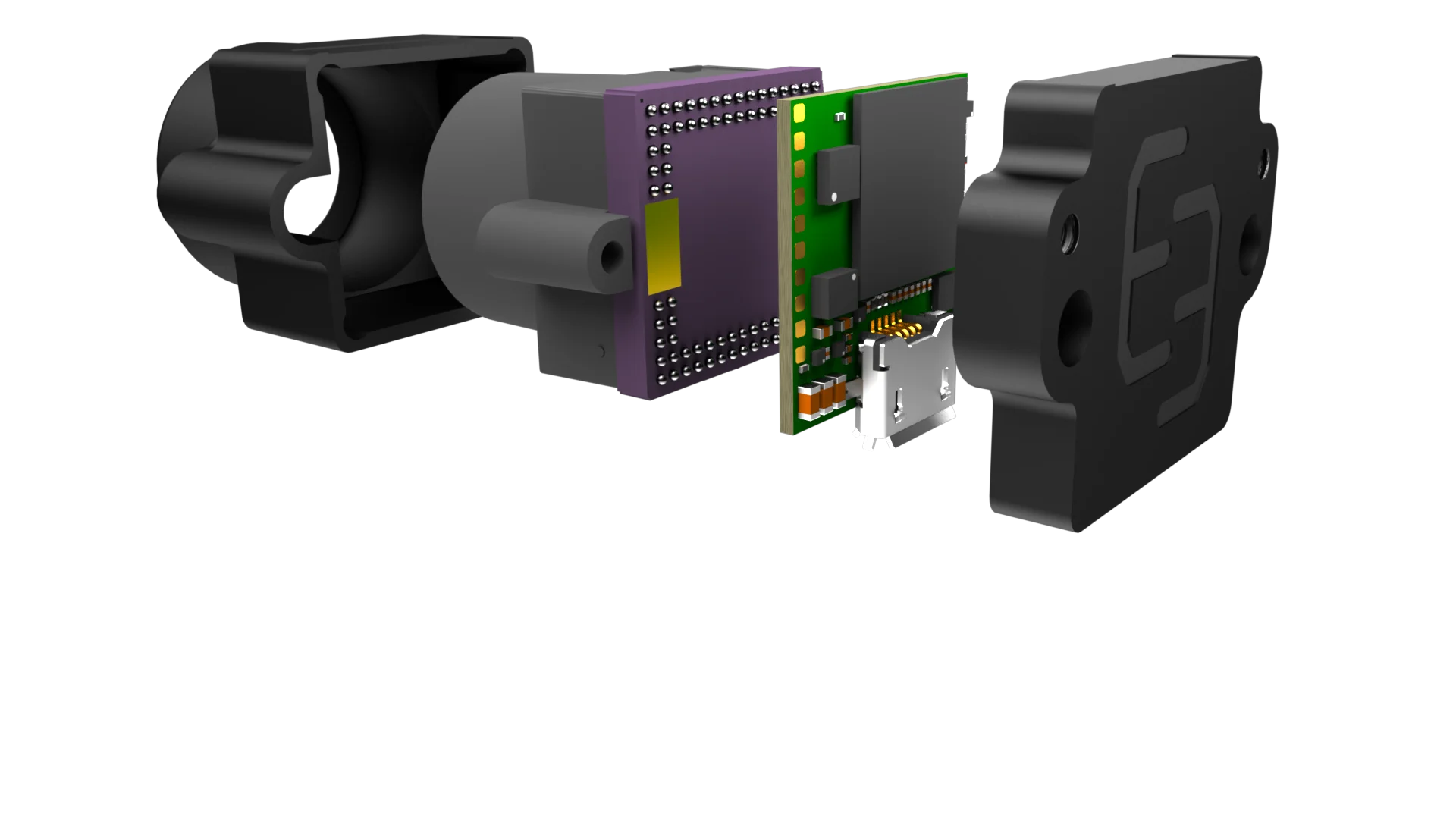

Eileen View Exploded

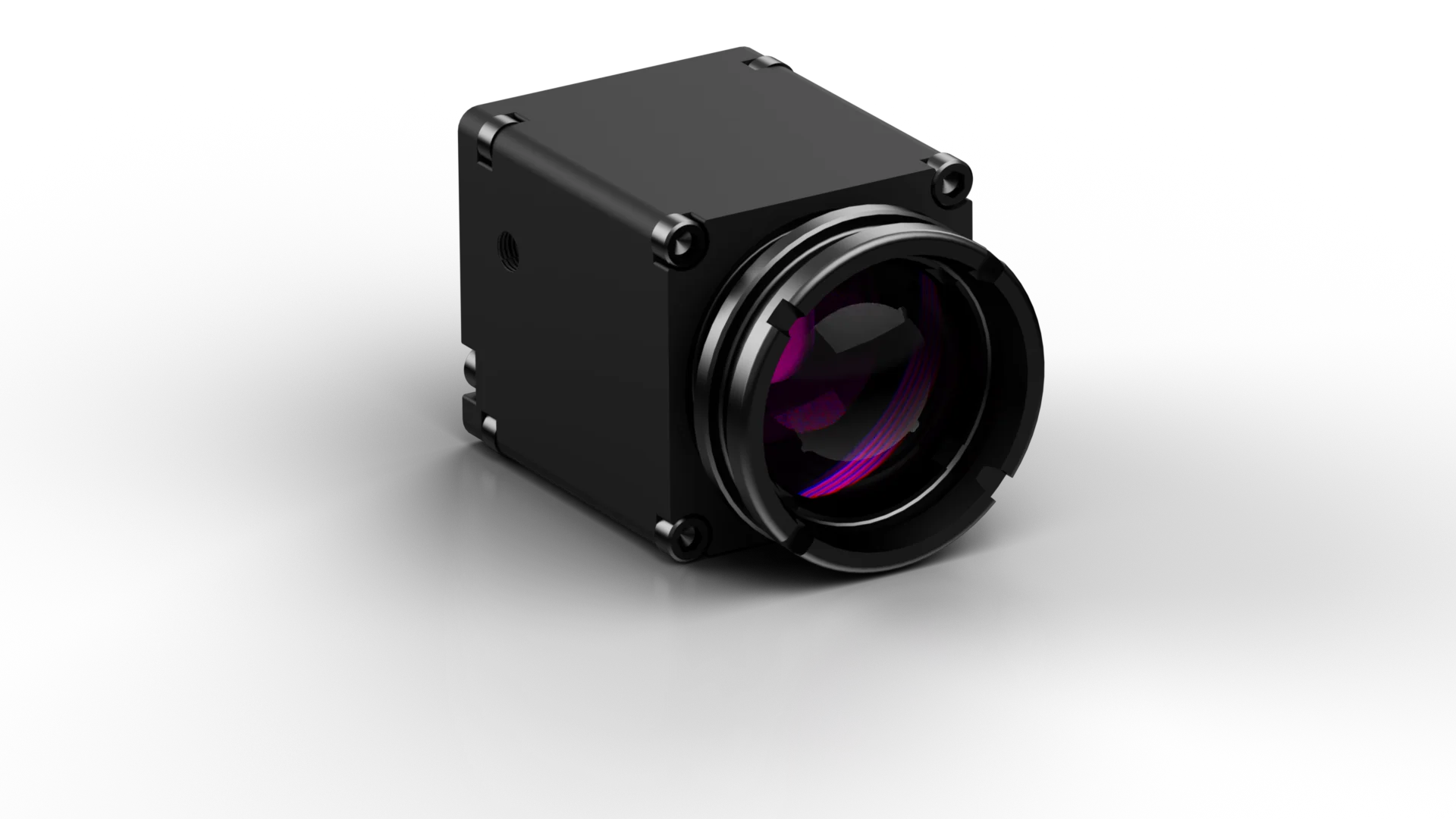

Ernest 6

Ernest 6
  • Resolution : VGA 640 x 480 pixels
  • Frame rate : 60 FPS
  • Dimension : 21 x 21mm
  • NETD : <50mK standard
  • Shutter : Built-In
  • Interface : USB or Flex
  • HFOV : 15°, 30°, 50° or 90°
  • Sensor : LYNRED ATTO640

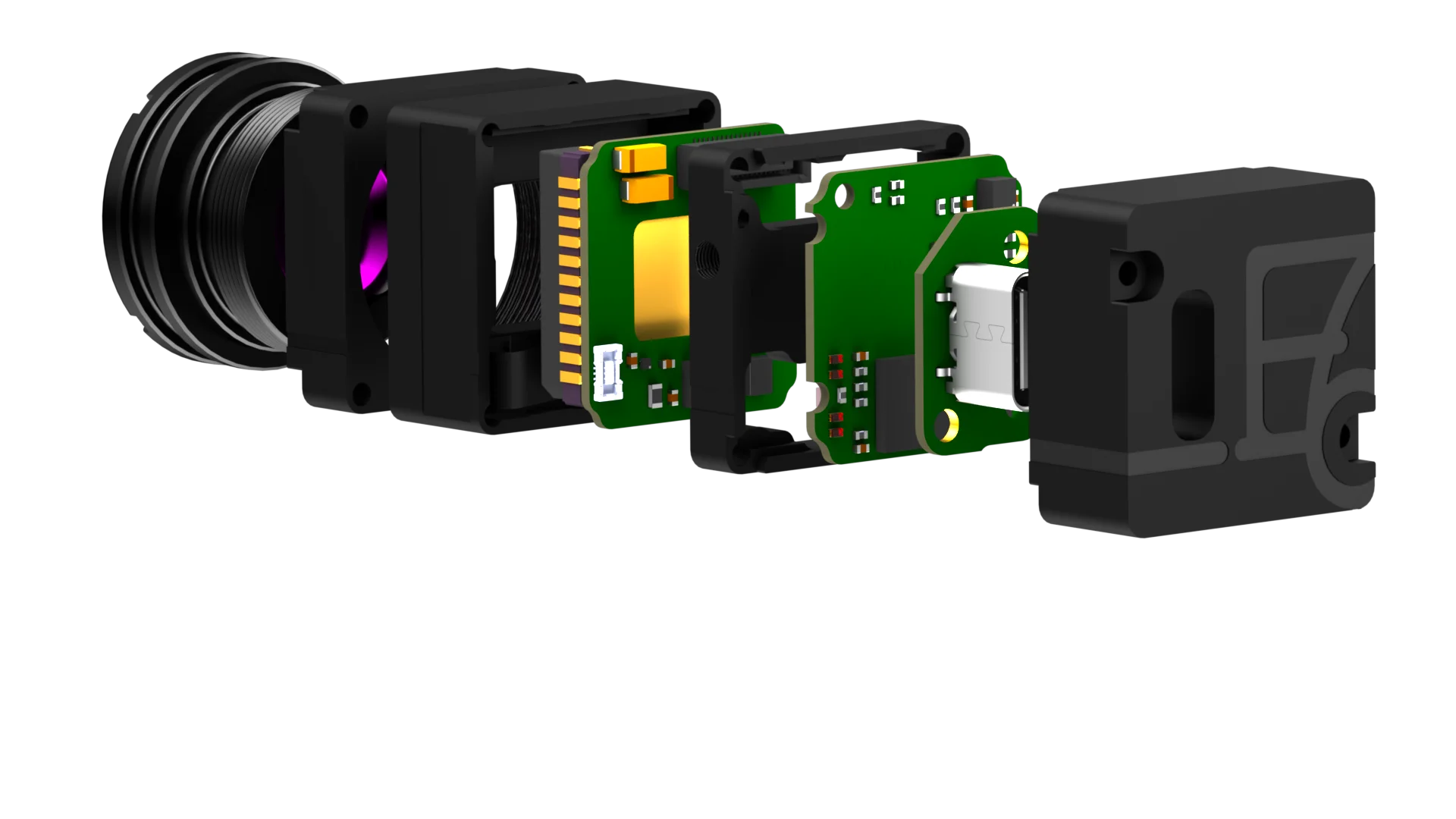

Ernest View Exploded

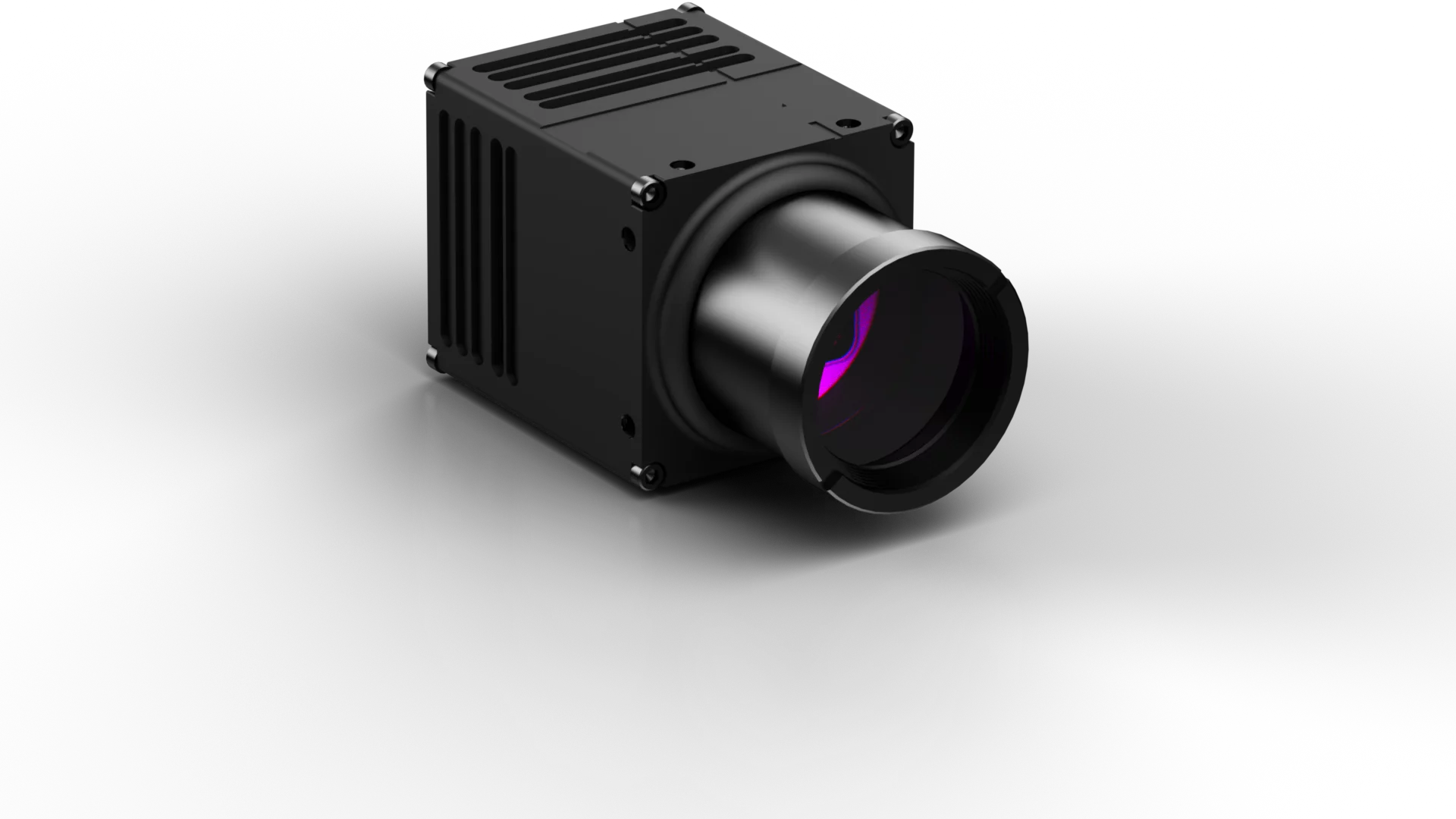

Niels 12

Niels 12
  • Resolution : XVGA 1280 x 1024 pixels
  • Frame rate : 30 FPS
  • Dimension : 32 x 32mm
  • NETD : <50mK standard
  • Shutter : Built-in
  • Interface : USB
  • HFOV : 15°, 30° or 50°
  • Sensor : LYNRED ATTO1280

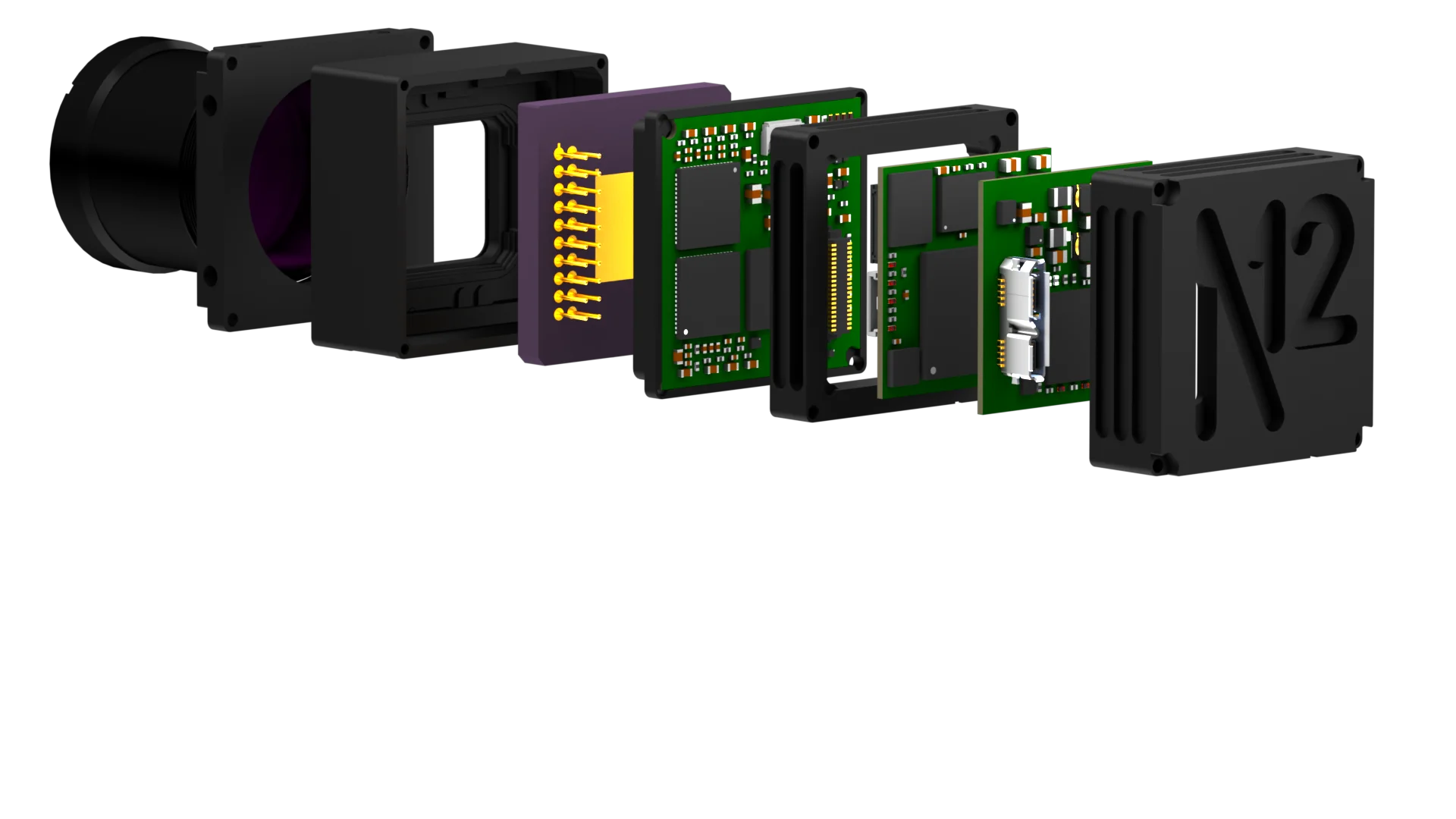

Niels View Exploded

Good to know: the Ernest and Niels family have a mechanical shutter by default, but can also be used shutterless.

CUTTING-EDGE THERMAL IMAGING FEATURES

Each thermal camera core is a compendium of mechanical, optical, electronic and software technologies. Our teams have worked meticulously to deliver camera cores with astounding performance, optimum signal-to-noise ratio, controlled power consumption and optimal thermal stability in the smallest possible form factor. Added to this are the functionalities of our Software Development Kit (available for Linux, Android and Windows), which enhance the previous intrinsic performance tenfold. The aim is clearly to provide you with the right tools to rapidly integrate, customize and deploy your vision system, whatever your operational constraints.
Note that the camera cores are shutterless calibrated in-house according to three profiles: standard, extended and finally precise. As a result, you benefit from a constant thermal video flow (without interrupting the mechanical shutter if necessary) for applications where this parameter is critical. As for the shutter, it can be controlled for additional operations such as protection against direct sunlight.

GROUND-BREAKING AMAZING ADVANTAGES

One and the same leitmotiv: to provide you again and again with added value and differentiation, so that you can stand out from the crowd with exceptional products. This strong, structuring foundation translates into numerous competitive advantages that bring you de facto tangible benefits:

  1. Time To Market reduced
  2. Development cost optimized
  3. Performance / Price ratio maximized

Cost-effective

Ultra Small

Versatile

Get Hands On With Senssight Camera Cores

There’s nothing like trying it out to get a feel for the product.

IN THE NEWS TODAY

There’s always something new, both in terms of products and the services we offer. Don’t miss any of the latest news below.

About us

Senssight, created in January 2017, was incorporated at the beginning of 2024 into the BNEO group, which in particular owns Fullscale. This acquisition is part of a new strategy aimed at extending the product portfolio and services delivered to customers by moving further down the value chain. This external growth also aims to address new markets and new applications to diversify and grow the business of both entities. On the one hand, Fullscale designs and markets proximity cards for thermal infrared imagers (LWIR Long Wave Infrared ), combined with interface cards (MIPI, USB, etc.). On the other hand, Senssight integrates Fullscale products, offering various optics, a mechanical housing, firmware updates and, above all, an SDK (Software Development Kit) with radiometric calibration support. This supply is commonly referred to as the “Camera Core” or “Camera Module”.

Mission

To accelerate and simplify the deployment of thermal camera cores for the new challenges of property and personal safety, defense and Industry 4.0 without compromising on quality.

Vision

Unleash the capabilities and possibilities of thermal imaging for a safer, more resilient world day after day.
